JOYO JP-02 Guitar Effects Pedal Power Supply

JOYO JP-02 Guitar Effects Pedal Power Supply

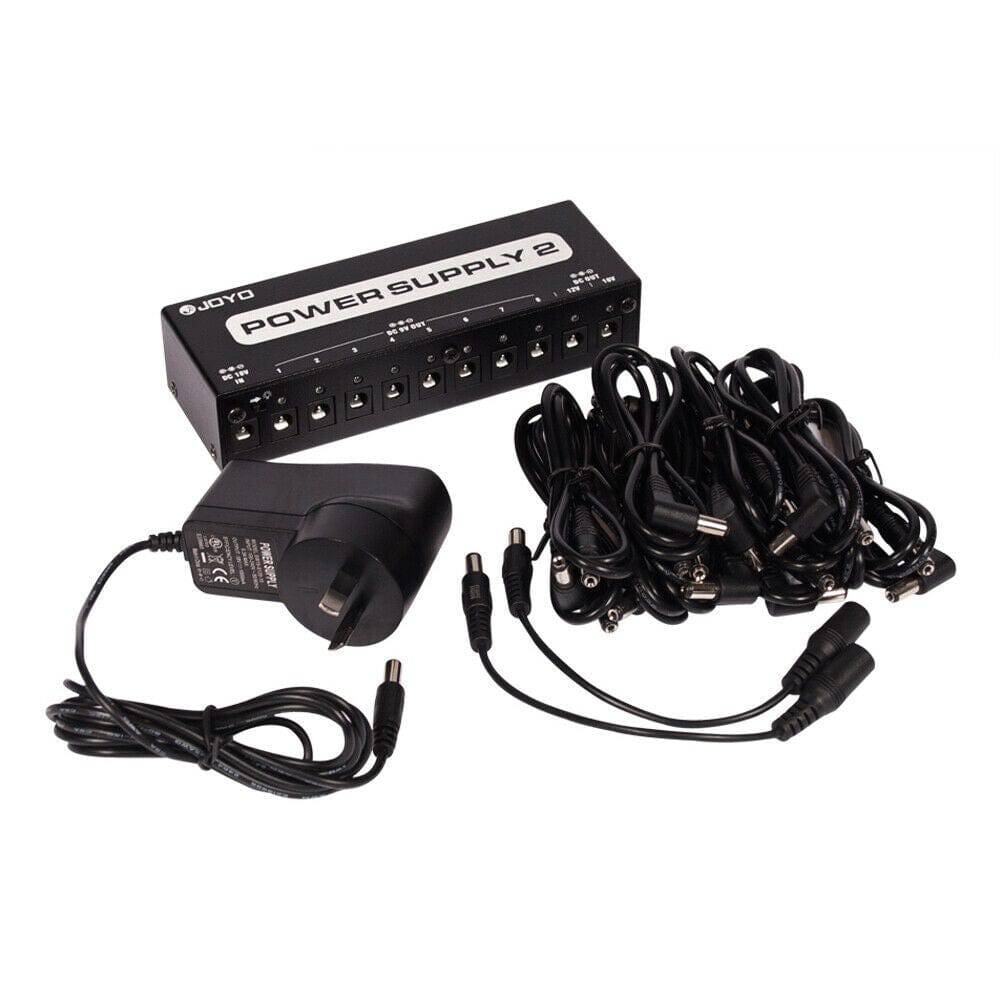

The JOYO JP02 power supply includes the power supply module, a AC- DC supply for the model and all the DC cables required to run your pedals.


Tested by thousands of users worldwide, our JP-02 power supply is specially designed to power up your effects pedals, without interference, power surge or loss to your effects.

Features include:

  • Blue LEDs----Short circuit protection indicator and light source for your pedal board.
  • Star Earthing System
  • Ten independant chip power supply outputs.
  • Isolated Short Circuit/Over current protection, meaning each output has isolated circuit protection
  • Multiple output voltages (slot 1 to 7 for 9V@100mA, slot 8 for 9V@500mA, slot 9 to 12V@100mA, slot 10 to 18V@100mA)
  • Cables included (power input, 10 x standard tip pedal power cables, 2 x power link cables)

A power supply on its own won't reduce the noise in your system compared to batteries, where it can help is that if you're using multiple supplies and you have an earth loop (which creates a hum) the reason for the hum is that when you are running different supplies and have different paths to earth (its quite a complex subject). If you need help choosing the best option please let us know.

Specifications:

  • Model : JOYO JP02
  • Power Input: AC 110v - 240V transformer to DC 18V into the brick. (transformer included)
  • Power Output :
  • 7 x 9V @ 100mA
  • 1 X 9V @ 500mA
  • 1 x 12V @ 100mA
  • 1 x 18V @ 100mA
  • Size : L150 x W50 x H30mm
  • Includes : Power Brick, Power transformer, 10 DC Power leads with 90 degree plugs
  • Weight : 388g
